Description

Flow Table

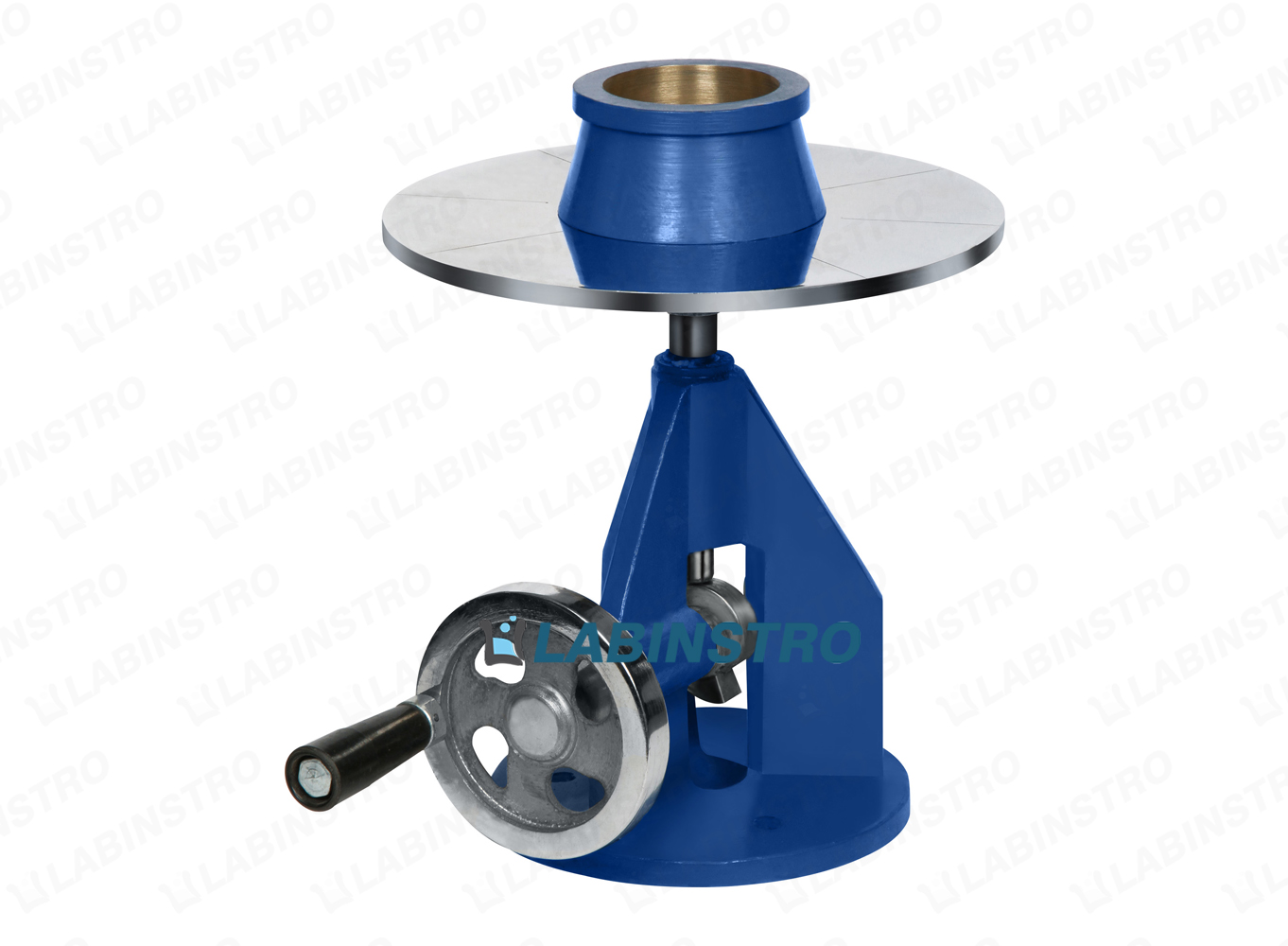

This is often utilized for deciding the work ability of building limes. The stream table comprises of a 30 cm dia clean steel plate with 3 engraved annular circles 7, 11 and 19 cm dia. The table best is organized for a free drop of 12.5 mm by a cam activity. Provided total with one brass cone shaped form, 65 mm i.d. at base and 40 mm i.d. at beat, stature of the shape 90 mm..

Flow Table: For Determining The Flow Of Cement Concrete
PROCEDURE
1. Before commencing test, the table beat and interior of the shape is to be wetted and cleaned of all coarse fabric and the overabundance water is to be expelled with a elastic squeezer.
2. The shape is to be immovably held on the middle of the table and filled with concrete in two layers, each roughly one-half the volume of the form and rodded with 25 strokes with a tamping pole, in a uniform way over the cross segment of the mould.
3. After the best layer has been rodded, the surface of the concrete is to be struck off with a trowel so that the shape is precisely filled.
4. The shape is at that point expelled from the concrete by a unfaltering upward pull.
5. The table is at that point raised and dropped from a stature of 12.5 mm, 15 times in approximately 15 seconds. 6. The distance across of the spread concrete is the normal of six symmetrically dispersed caliper estimations examined to the closest 5 mm.

CALCULATION
The stream of the concrete is the rate increment in distance across of spread concrete over the base distance across of the formed concrete, calculated from the taking after formula.

Manufactures,Suppliers,Exporters of Flow Table  for Testing Equipment.Contact us to get Superior Quality designed Flow Table For Testing Equipment for schools, colleges, research facilities and different businesses.We acknowledge bulk orders for government tenders for worldwide.,SOUTH AFRICA, EUROPE,INDIA,USA,AUSTRALIA,CANADA,UAE,NEW ZEALAND,UK.
